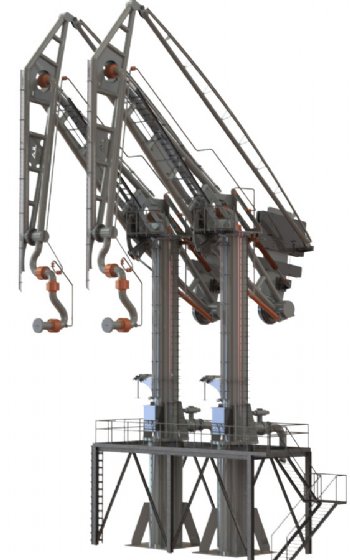

GasTec Marine Loading Arm

GasTec Marine Loading Arm

Part Number: MLA3

The GasTec is specifically designed to unload Compressed Natural Gas under high pressure.

Suitable for operation pressures up to 100 bar at temperatures between -50 and +200°C with diameters from 6" up to 12"

Key Features

  • Cable free design with adjustable balancing link
  • Fully hardened replaceable cartridge swivel ball races
  • Support jack bent towards ship manifold
  • Provided with pressure relieve system
  • Vacuum resistant block seals
  • Hydraulic operation
  • Supported design with single product pipe
  • Only six swivel joints required with minimal jetty loads.
  • Minimum pressure drop
  • Zero emission
  • 10 years guarantee
Technical Details
  • Hydraulically operated
  • Dedicated hydraulic solenoid valves for each Marine Loading Arm
  • Completely balanced, in empty or full condition
  • 6" up to 20"
  • -50°C / + 200°C
  • Suitable for all (petro-) chemicals, liquids and gases.
  • up to 900#
  • Available in all materials, e.g.: Carbon Steel, Stainless Steel and Stainless Steel 316Ti
