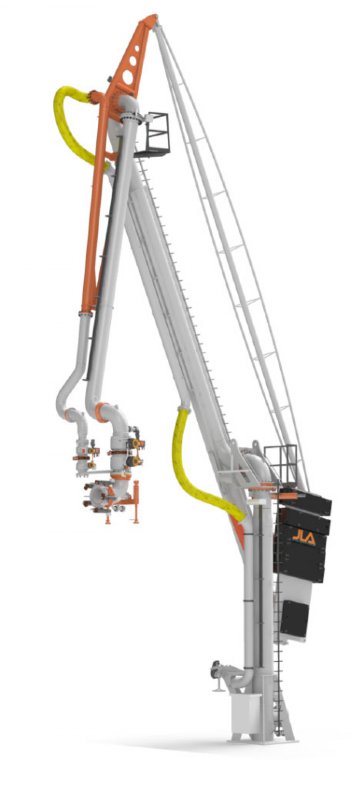

HydroTec Marine Loading Arm

HydroTec Marine Loading Arm

Part Number: MLA

The HydroTec is hydraulically operated.

Available in diameters ranging from 6" to 20", suitable for all liquids & gasses between -50°C and +200°C

Key features

  • Cable free design with adjustable balancing link
  • Fully hardened replaceable cartridge swivel ball races
  • Support jack bent towards ship manifold
  • Vacuum resistant block seals with zero emission
  • Self supported, lightweight design
  • Only six swivel joints required
  • Minimum pressure drop
  • Operator friendly locking system
  • Modular design suitable for container shipment
  • 10 year guarantee
Technical Details
  • Hydraulically operated
  • Dedicated hydraulic solenoid valves for each Marine Loading Arm
  • Completely balanced, in empty or full condition
  • 6" up to 20"
  • -50°C / + 200°C
  • Suitable for all (petro-) chemicals, liquids and gases.
  • 150# and 300#
  • Available in all materials, e.g.: Carbon Steel, Stainless Steel and Stainless Steel 316Ti
